Long distance water distribution.
The discharge of dam.
Accurate aeration.
Pipe network control.
Other special applications.
Double flanged acc. to EN 1092-2

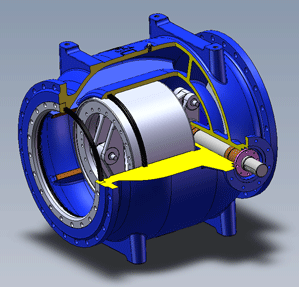

Control valve in straightway type
Valve piston force balance, low operating torque
The flow is circular in cross-section
Axial movement of the plunger by means of crank
With self-locking worm gear unit including position indicator
Double sealing structure
Brass weldded overlay rail, wear-resistance
The outlet can be customized according to the working conditions
Body: ductile iron EN-JS1030(GGG-40)
Plunger rail: aluminum bronze weldded overlay
Plunger: stainless steel 1.4301
Bushing: brass
Sealing ring: EPDM
Handwheel
Electric actuator
Hydraulic control actuator
Wind-solar hybrid DC electric actuator
Body: epoxy coated both inside and outside
