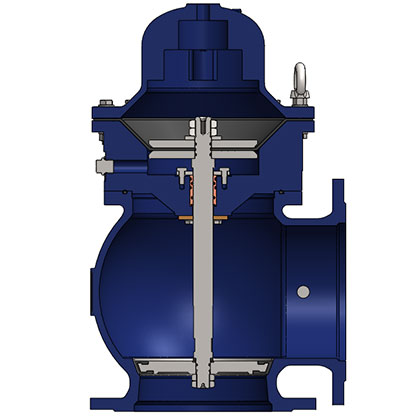

It is an angle type shut-off valve powered by pneumatic or hydraulic system. Usually installed in rows on the outer wall in the bottom of the sedimentation tank to discharge sediment, sand, and dirt from the bottom of the tank.
The flange complies with EN1092-2 standard
Valve seat: Wear and corrosion resistance
Self-cleaning stem design
Single or double acting
Full size design, fast discharging speed
Easy maintenance
Body: ductile iron
Bonnet: ductile iron
Stem: SS410
Main sealing flap: EPDM + stainless steel
Membrane: reinforced nylon
Other materials can be provided according to user requirements
Body/Bonnet: epoxy coating
Valve stem: stainless steel
Bolts and nuts: stainless steel
